FacebookAI-Based Defense Systems
Anti-Drone Defense System (ADS)

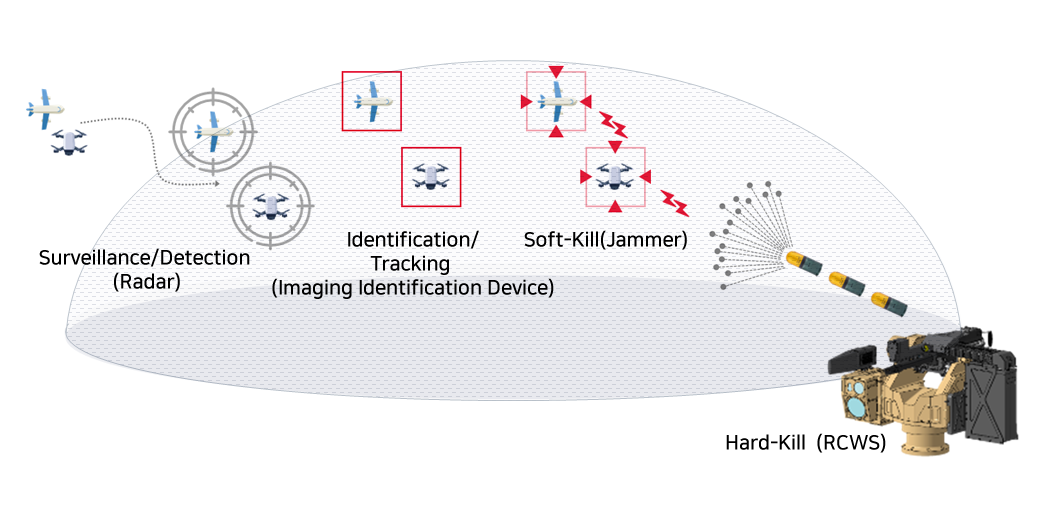

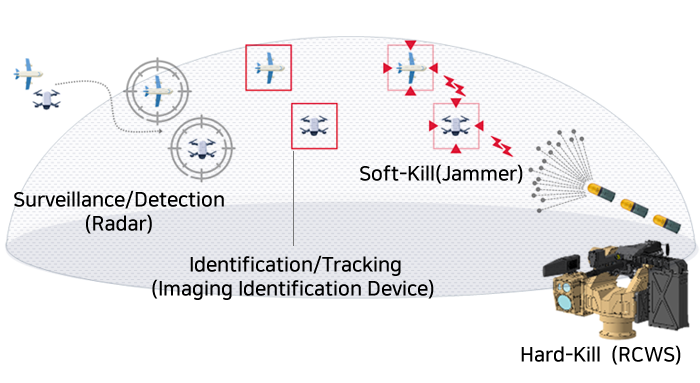

System Configuration & Optional Concept
Detection
Radar
- Low-altitude, wide-area UAV surveillance/detection
Identification
Imaging Indentification Device (EO/IR)
- Radar-supported real-time tracking
- AI-based automatic identification / tracking
Soft-Kill
Jammer
- Disruption of controllers and GPS frequencies
Hard-Kill
RCWS
- 7.62/12.7/40mm
- 40mm Air Burst Munition (ABM)
Product Overview
World’s best integrated anti-drone defense system incorporating the latest technologies
Product Features
- Integrated structure (Radar + Imaging Identification Device + Jammer) to minimize blind spots
- AI-based target classification (vehicles, ships, aircraft, etc.)
- Equipped with inhouse system integrated (SI) platform for linking various sensors and neutralization equipment
- Effective defense through use of Air Burst Munitions
* Lethal (steel ball), non-lethal (streamer) types
Soft-Kill Integrated

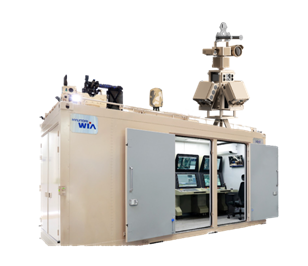

Fixed

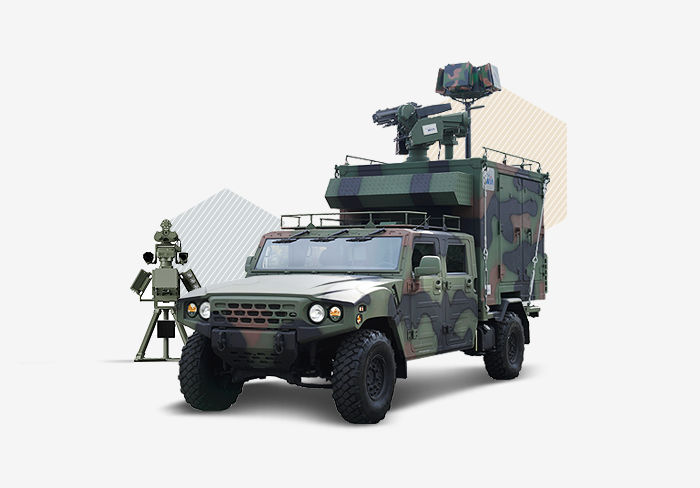

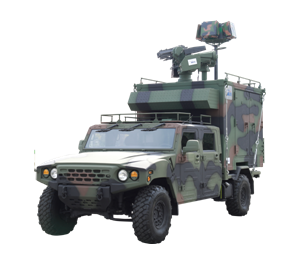

Mobile
Specifications
| Type | Specifications |
|---|---|
| Operation Mode | Integrated, Fixed, Mobile types |
| Hard-Kill | 7.62/12.7/40mm machine guns, 40mm air burst munitions applicable |
| Soft-Kill | RF Jammer - Effective jamming range: 20 km (GNSS), 10 km (ISM) |
| Imaging Identification Device (EO/IR) | Day/Night detection range: 8km / 5km, azimuth: 360° unlimited traverse |
| Detection Radar | Up to 12km detection (based on DJI Phantom 4), detection rate over 95% |
| Characteristic | Optional: Laser weapons applicable for AI-based target identification/tracking |
Application Cases
