FacebookThermal Management Module
Coolant Module
Product Overview

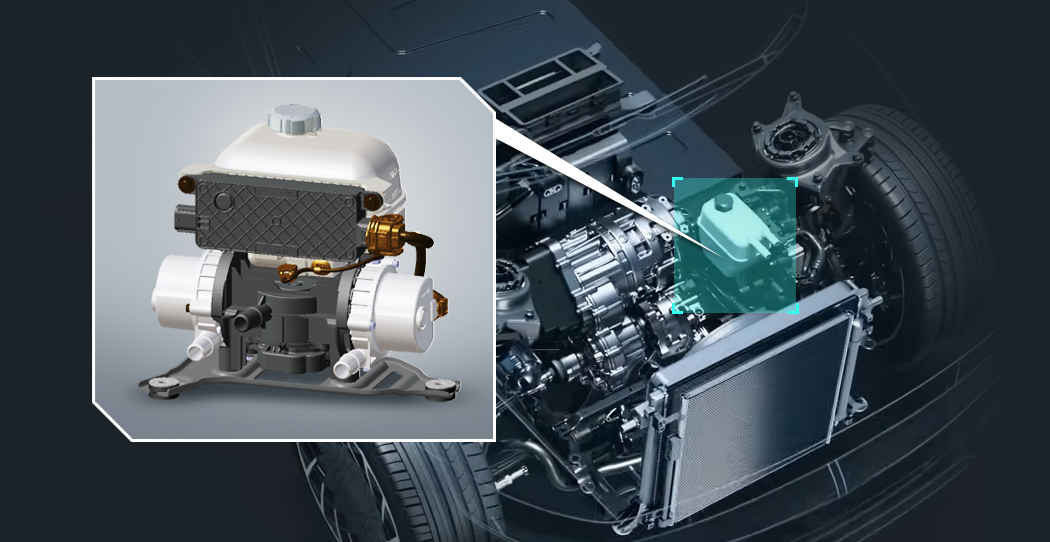

The coolant module is a key thermal management component designed to effectively cool various heat sources (battery, drive motor , electrical components, etc.) within the vehicle. Consolidating the reservoir tank, coolant pump, valve, and integrated driver into a single module, this solution achieves efficient thermal control, space optimization, and system weight reduction.

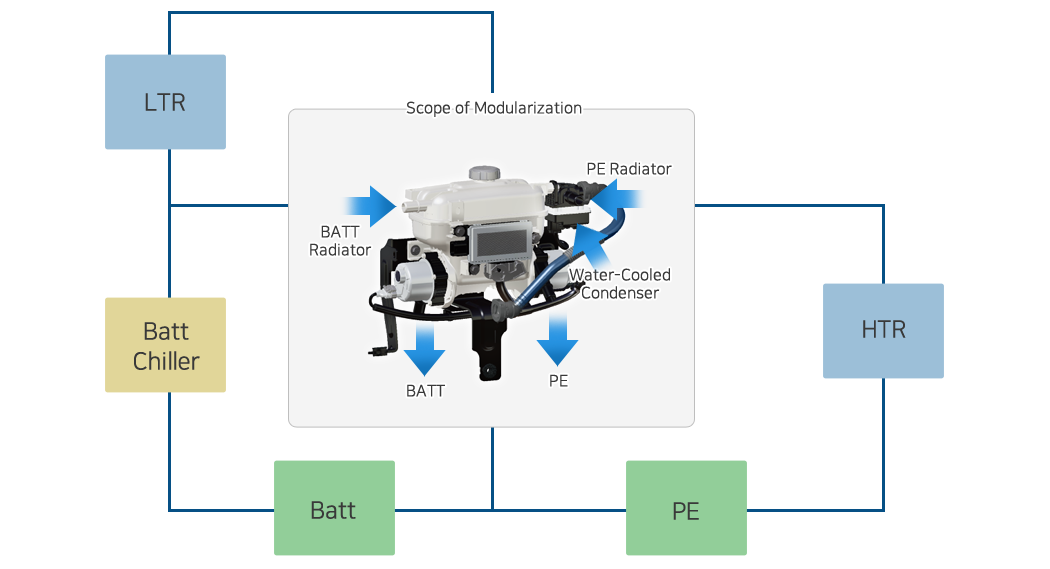

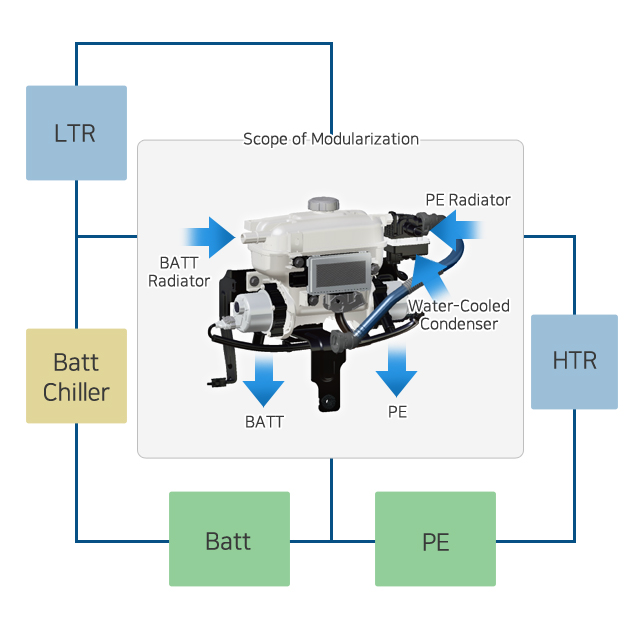

Modularization

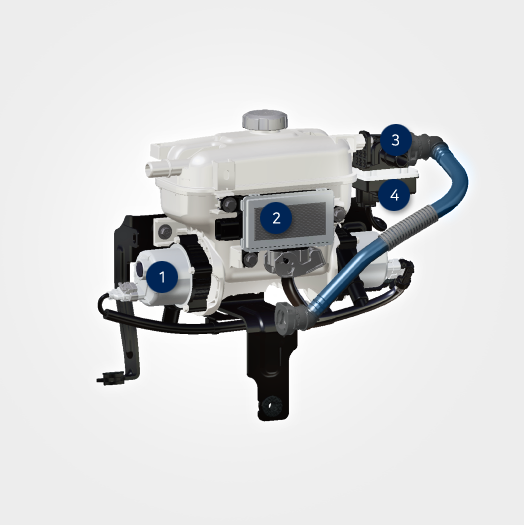

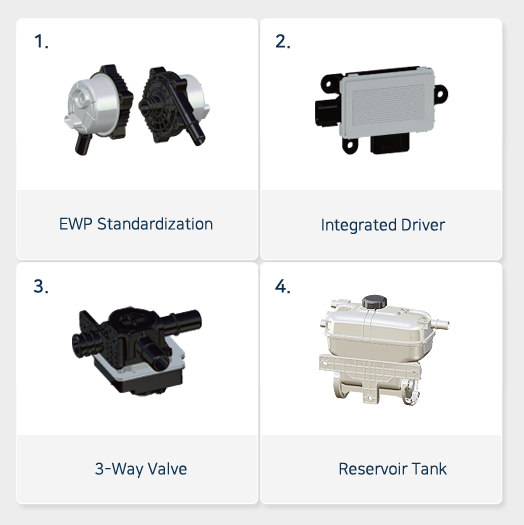

Functional Integration
- Weight: 5kg (including bracket)
- NVH performance improvement
- Electrical connector: 3 ▶1
- EWP specification : 14LPM @ 1.5bar↑ / 25LPM @ 0.6bar↑
- Maintenance cost reduction: EWP maintenance without coolant replenishment
- Development completed, (mass production from May 2023)
Key Functions
| Heat Pump System | Non-Heat Pump System |
|---|---|
| PE Cooling (Air Cooling) | |
| PE Cooling + BATT Cooling | |
| PE Cooling + BATT Chiller Cooling | |
| PE Cooling + BATT Chiller Cooling + Cabin Cooling | |
| PE Waste Heat Recovery + Cabin Heating | Cabin Heating |
| BATT Heating | |
| Dehumidification | |
