FacebookThermal Management Module
A/C KIT
Product Overview

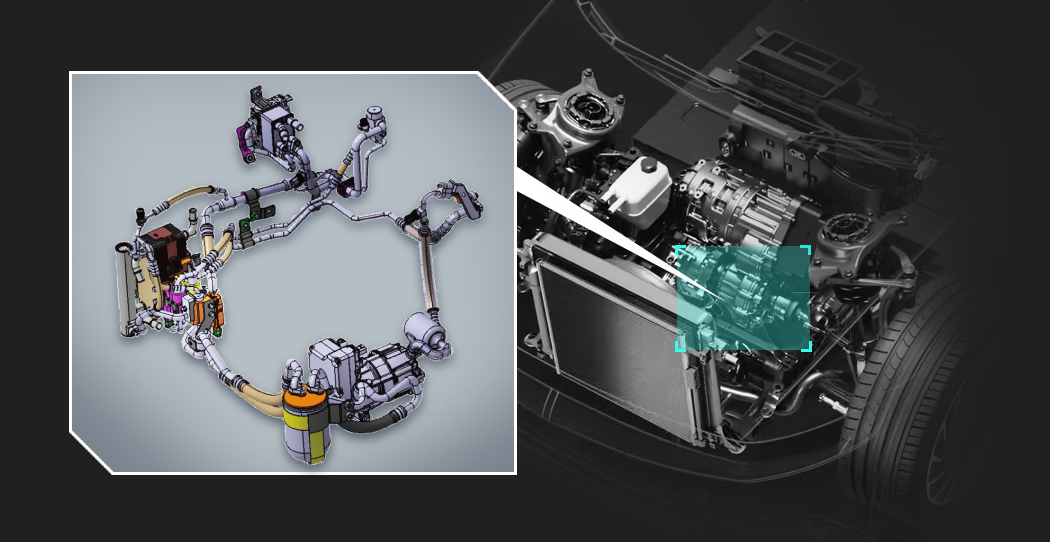

The A/C KIT is a system that packages key cooling components designed to provide cooling and maintain a comfortable cabin temperature. It consists of essential components that make up the refrigerant circuit, including chiller, water-cooled condenser, expansion valve, refrigerant control valve, and accumulator, streamlining overall system and enhancing assembly convenience.
Product Features
- Chiller : Cools the battery by exchanging heat between refrigerant and coolant
- Water-cooled condenser : Exchanges heat between refrigerant and coolant and condenses refrigerant
- Expansion valve : Expands condensed refrigerant to perform heat exchange with air or coolant in the evaporator or chiller
- Refrigerant control valve : Changes the refrigerant flow path according to the operating mode
- Accumulator : Performs gas-liquid separation to prevent liquid refrigerant from entering the compressor
- Hose & Pipe : Transfers refrigerant between major components while considering vibration and insulation
