Mortars
System Summary

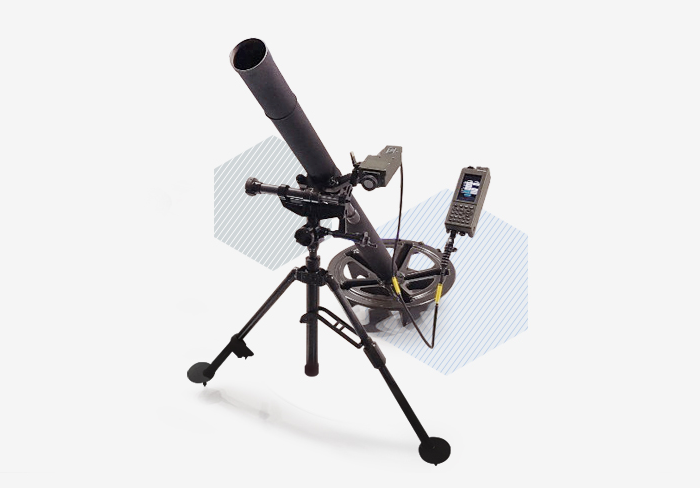

- Lightweight, high rate fire mortar deployed by the Republic of Korea Army

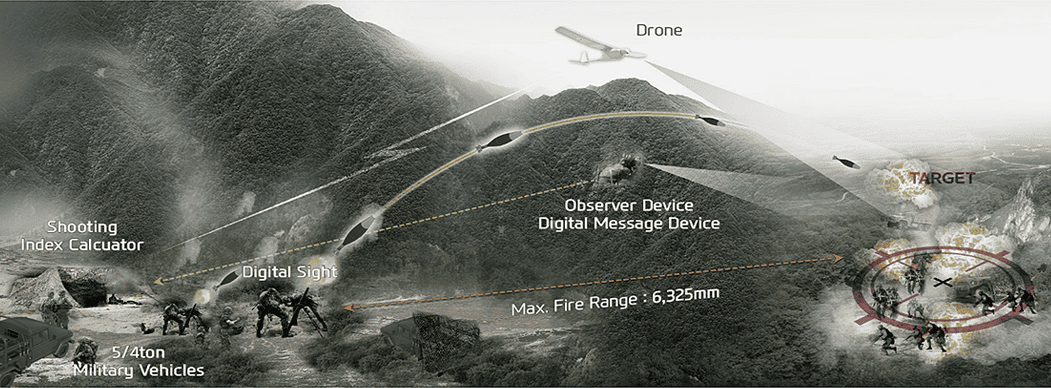

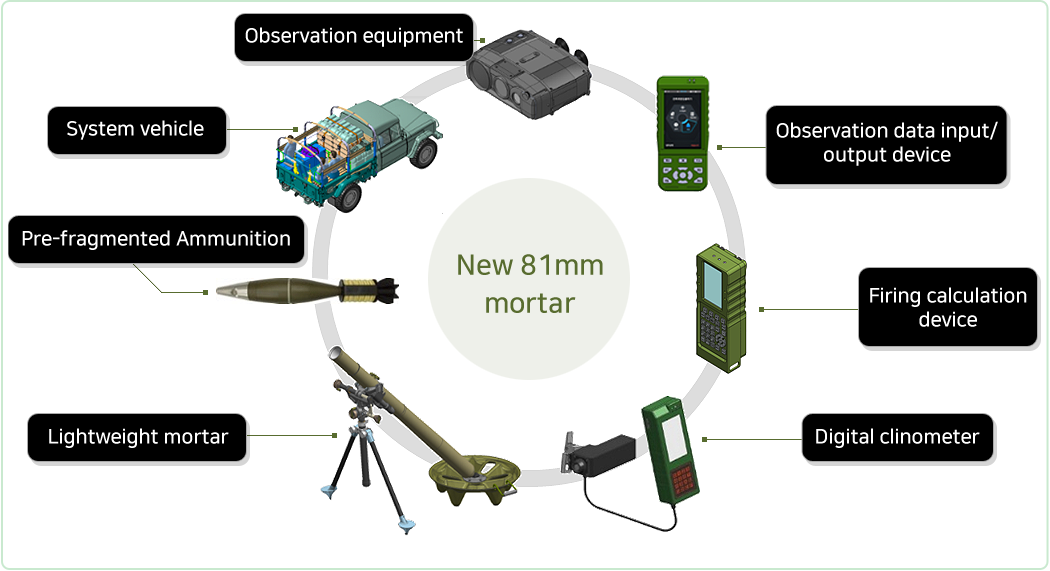

- Digitalization of the entire process from observation to fire using GPS and data link technology supported digitalization for improved speed and accuracy from observation to fire (New 81mm mortar)
Product Features
- Lightweight, high-elevation firing, high rate firing
- Extended range
- Compatible with all existing and new ammunition types
Specifications
| Type | KM114 new 81mm mortar | KM187 81mm mortar | KM181 60mm mortar |
|---|---|---|---|
| Caliber | 81mm | 81mm | 60mm |
| Range | Max. 6,325m, Min. 78m | Max. 6,325m, Min 78m | Max. 3,590m, Min. 44m |
| Chamber pressure | 13,500psi | 13,500psi | 8,000psi |
| Max. rate of fire | 30 rounds/min | 30 rounds/min | 30 rounds/min (4 minutes) |
| Sustained rate of fire | 10 rounds/min | 10 rounds/min | 20 rounds/min (10 minutes) |
| Total weight | 34kg | 42kg | 18kg |
| Barrel length | 1,550mm | 1,550mm | 987mm |

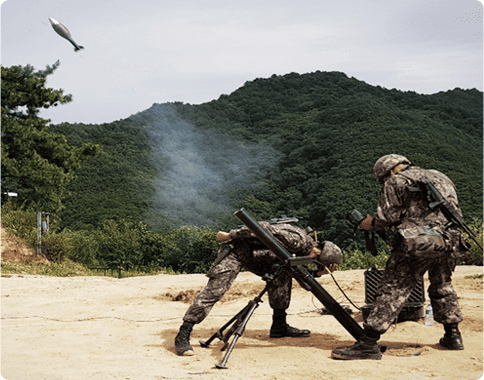

Application Cases
